Remote Wireless Data Solutions. WiMax Basestation


LTE Antennas

  For now we address LTE in the N. American AWS band 700MHz as deployed by Verizon Wireless only. We will continue to test multiband antennas for 4G LTE & 3G Cellular/PCS bands and update this page as well as other popular frequency bands. May also need low-loss LMR400 cable and LTE Modem Pigtail to complete you setup.




700 MHz LTE Antennas

  Note that many of the antennas below cover only the 4G LTE 700MHz band and do not support 3G at 800MHz or 1900MHz. We will continue to test multi-band directional and omni-directional antennas and update this page. Alternatively you may use 2 antennas to cover both bands together with a diplexer.


Buy LTE 4G Modem Pigtail

Buy LMR-400 Low Loss Coaxial Cable

Search Antenna/Cable Adapter

Find LTE Repeater/Amplifier



Image Brief Description E-Store SKU & Link
700MHz LTE Yagi Antennas
Verizon LTE Band 10dBi Yagi Antenna

LTE Band 13 Outdoor 10dBi Yagi Antenna

Frequency Range 746-787MHz
Gain(dBi) 10
Input impedance(Ω) 50
Beamwidth (Azimuth/Elevation) 35°/30°
Size(inches) 30" x 10" x 2.4"
Front-to-Back Ratio >18dB
Construction Al
Cable/ Connector/ Mounting

10ft cable w/ N-female connector. Mount in 1.25-2.5 mm dia pole. Pole mount brackets included.

RFWAT07YNF
700 MHZ LTE Yagi Antenna

740-806 MHz 11dBi LTE Yagi Antenna

Frequency range 740-806 MHz
Gain(dBi) 11.15dBi
VSWR(50 Ohm) ≤2.0:1
Polarization Vertical
Beamwidth (Azimuth/Elevation) 45°/ 45°
Input impedance(Ω) 50
Size(inches) 2.5' Length
Construction Al Alloy
Cable/ Connector N-Female (No Cable)

Detailed Specification

Application Drawings

YA5740W
14dBi 745 - 806 MHz Yagi Antenna (11 Element)

745-806 MHz 14dBi LTE Yagi Antenna

Frequency Range 745-806MHz
Gain(dBi) 14.1
Polarization Vertical or Horizontal
Input impedance(Ω) 50
Beamwidth (Azimuth/Elevation) 44° / 38°
Size(inches) 42" x 8.5"
Front-to-Back Ratio >20dB
Wind Loading 150 mph (0.48 sq ft wind load, 9.5lb lateral thrust)
Construction Aircraft quality 6061-T6 aluminum for optimum strength. Antenna is anodized for corrosion.
Cable/ Connector/ Mounting

N-Female (2ft RG213 jumper. Mount brackets included.

BMYD745M
700MHz LTE Directional Panel Antennas
3.65GHz WiMax Variable Beamwidth antenna

LTE Band 13 Outdoor 10dBi Panel Antenna

Frequency Range 746-787MHz
Gain(dBi) 10
Polarization Vertical
Input impedance(Ω) 50
Beamwidth (Azimuth/Elevation) 152°/35°
Size(inches) 30" x 10" x 5"
Front-to-Back Ratio >25dB
Construction Al reflector, Gray UV resistant plastic radome.
Cable/ Connector/ Mounting

N-female connector. Mount in 1.25-2.5 mm dia pole. Pole mount brackets included.

RFWAT07PNF
Pear M5277i MiMo LTE Antenna

698 - 2700 MHz MIMO Directional In-Building/Outdoor Antenna

Frequency Range 698-960, 1710-2700 MHz
Gain(dBi) 5.5/8dBi
Polarization Vertical/Horizontal, Dual Slant
Input impedance(Ω) 50
Beamwidth (Azimuth/Elevation) 90°/65°, 110°/65°
Size(inches) 10.1” x 7.9” x 2.5”
Front-to-Back Ratio >25dB
Construction Indoor w/ UL 94-V0 flammability rating, Outdoor w/ IP65 ingress protection
Cable/ Connector/ Mounting 2x N-female connector w/ 1ft cable
M5277i
9dBi 700 MHz LTE Panel Antenna

694-806 MHz 9dBi LTE Panel Antenna

Frequency range 694-806 MHz
Gain(dBi) 9
VSWR(50 Ohm) ≤2.0:1
Polarization Vertical
Input impedance(Ω) 50
Size(inches) 10" x 10"
Construction ABS Plastic
Mounting Pole mount kit for up to 2" O.D mast included
Cable/ Connector TNC-Female (no cable - Select LMR-400 N-Male Cable or use appropriate connector E.g. TNC-Male/N-Female)
PN9-700

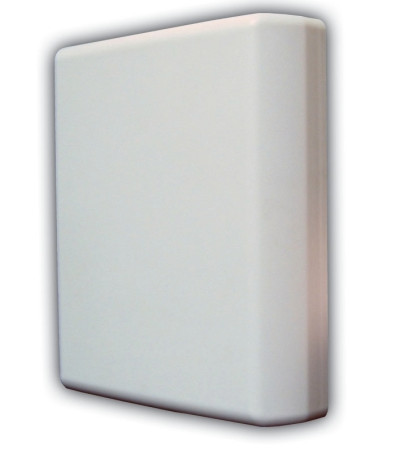

3G/ 4G Multiband Outdoor MIMO Diversity Antenna

Cellular/ WiFi/LTE/ WiMax Outdoor MIMO Diversity Panel Antenna

Frequency range 698-960 MHz, 1710-2700 MHz (LTE Band13, Cellular, PCS, AWS, WiFi, WiMax)
Gain(dBi) 2.5
VSWR(50 Ohm) ≤2.5
Input impedance(Ω) 50
Size(inches) 4.5" x 4.5" x 1.5"
Cable/ Connector 2x 16FT Cable w/ FME-Female Connector

- Note that these are two antennas integrated into one radome so you can use for MIMO multiantenna systems or for antenna diversity.

- Note that this is a multi-band antenna and thus can be used for both 4G LTE at 700MHz, 3G at 850/1900MHz, GPS at 1.5GHz, WiFi at 2.4GHz, 4G WiMax at 2.6GHz as well as support for AWS band 1700/2100MHz.

- Note also that this is only a unity gain (2.5dBi) antenna. As such it should be used only to overcome indoor coverage problems where the outdoor signal is quite strong!

Detailed Specification

WMM-7-27
700MHz 4G LTE, 800/1900 MHz 3G Low-Profile Mobile Antennas
MGRM-WLF-1C10 Wideband WiMax Antenna

Cellular/ PCS/ LTE/ WiMax Wideband Magnet Mount

Frequency range 694-894 MHz / 1.7 - 2.7 GHz (Cellular, PCS, AWS, WiMax, LTE)
Gain(dBi) 3
VSWR(50 Ohm) ≤2.0
Polarization Vertical
Input impedance(Ω) 50
Size(inches) ø1.75" x 3" Height
Construction ABS Plastic
Cable/ Connector 10ft RG-58U w/ SMA-Male Plug Connector

- Can also be used with 4G WiMax modems that operate on both Cellular EVDO RevA 1.9GHz PCS and WiMax 2.6GHz.

- low-profile suitable for vehicle or public enclosure anti-vandalism applications

MGRM-WLF-1C10
Cellular, GPS, LTE, WiFi & PCS Mobile Sharkfin Antenna

Cellular, GPS, LTE, WiFi & PCS Mobile Sharkfin Antenna (3 Antennas in one)

Frequency range 698-960 - Cellular, LTE, Public Safety
1710-2170 - PCS, AWS
2400-2485 - WiFi
1575.42 - GPS
Gain(dBi) 5/5/7
Input impedance(Ω) 50
Size(inches) 3.5" x 4.3" x 4.3" (LxWxD)
Construction Makroblend
Cable/ Connector/ Mounting

2x17' RG580 cables w/ FME-F connectors

1x17' RG174 cable w/ SMA-Male connector

Mount on a 3/4" thru-hole

GPSDM700/2500FFS

LTM301

LTM401

LTM501

LTE, WiFi, GPS MIMO Surface Mount/ Magnet Mount Antenna

LTM301 Cable 1 & 2 (LTE): 694-960 MHz / 1710-2170 MHz
Cable 3 (GPS): 1575.42 +/- 2 MHz
LTM401 Cable 1 & 2 (LTE): 694-960 MHz / 1710-2170 MHz
Cable3 (WiFi): 2400-2500 MHz/ 4900-6000 MHz
Cable 4 (GPS): 1575.42 +/- 2 MHz
LTM501 Cable 1 & 2 (LTE): 694-960 MHz / 1710-2170 MHz
Cable3 & 4 (WiFi): 2400-2500 MHz/ 4900-6000 MHz
Cable 5 (GPS): 1575.42 +/- 2 MHz
Cable/ Connector/ Mounting

Cellular/WiFi: RF-195,15 ft, SMA-Male.

GPS: RG-174, 15 ft, SMA-Male

Mount on a 7/8" thru-hole (or magnet mount)

LTM301 (3 antennas)

LTM401 (4 antennas)

LTM501 (5 antennas)

LTE, Cellular, AWS low-profile surface mount antenna

Cellular/ PCS/ LTE Band 13/ AWS / WiFi Wideband Surface Mount Antenna

Frequency Range 690-960/ 1452-1492/ 1710-2500MHz
Gain(dBi) 2
Input impedance(Ω) 50
VSWR ≤1.6
Size(inches) φ4.8" x 5.6" H
Cable/ Connector

10ft cable w/ N-female connector.

RFWAT06252_5XD
RM-WLF-DN

694-894 MHz, 1700-2700 MHz Cellular, PCS, AWS, WiFi, 700MHz LTE, 2500MHz WiMax Wide-band Surface Mount Antenna

Well suited for uses with radios in outdoor enclosures or with outdoor battery backup UPS systems.

Frequency Range 694-894 MHz, 1700-2700 MHz
Gain(dBi) 3dBi
Max Input Power (W) 10Watts
Input impedance(Ω) 50
Construction ASA Plastic
Size(inches) ø1.75" x 4.1" Height
Mounting Mount on any surface 1/4" thick or less via a 5/8" through-hole
Cable/ Connector N-Female
RM-WLF-DN
SMW-305-3C3C2C

LTE-700MHz, WiFi- 2.4/5GHz, GPS- 1.575GHz Mobile Antenna

Frequency 694-894 MHz; 2400-2500/ 4900-6000 MHz; 1575 MHz
Gain(dBi) 3dBi - LTE; 5dBi - WiFi; 26dBi - GPS (GPS Voltage 3-5V)
Max Input Power (W) 10W - LTE, 20W - WiFi
Input impedance(Ω) 50
Construction White Polycarbonate
Size(inches) ø4.2" x 3.2" Height
Mounting 3/4" hole bolt mount
Cable/ Connector 3 x 15ft cables. RF195/ RF195/ RG174 with SMA(M)/SMA(M)/SMA(M) connectors
SMW-305-3C3C2C
MIMO Elevate Momentum Antenna

2x TS-9 MIMO Antenna for WiFi, LTE, 3G/4G Modems & CPE's

Frequency Range 700 MHz to 2600 MHz
Gain(dBi) 2.5
Input impedance(Ω) 50
VSWR ≤1.6
Size(inches) φ4.8" x 5.6" H
Cable/ Connector

10ft cable w/ 2x TS-9

6000450
700 MHz LTE Omni Antennas
700 MHz LTE Antenna

694-960 MHz 6dBi LTE Omnidirectional Antenna

Frequency 694-960 MHz
Gain(dBi) 6dBi
Max Input Power (W) 10W
Input impedance(Ω) 50
Construction Fiberglass
Size(inches) ø1" x 38" Height
Mounting Pole mount kit for up to 2.5" O.D mast included
Cable/ Connector N-Female (no cable)

OD6-700

See also OD4-700 (4dBi version)

Cellular/ PCS/ LTE/ WiMax Outdoor Omni

Cellular/ PCS/ LTE/ WiMax Outdoor 3dBi Omni

Frequency range 698-896/1700-2700
Gain(dBi) 3/ 3.5 dBi
VSWR(50 Ohm) ≤1.5
Polarization Vertical
Input impedance(Ω) 50
Size(inches) ø3.95" x 5.11" Height
Cable/ Connector N-Female (no cable)

- Includes pole mounting brackets

ANT7TS309965

  Top




The bandwidth available with 4G LTE/WiMax modems has opened up interesting possibilities in remote wireless data applications such as Telemetry, M2M and SCADA applications. Just as cellular replaced satellite, WiMax & LTE are poised to replace cellular in applications such as automated meter reading and backhaul of remote plants and networks.

Contact us to discuss your application. Our experienced team will custom-build your design using the best-in-class equipment and industry best-known-methods. We are also a Licensed Low-Voltage Wireless Communication contractor (Arizona ROC#253407) should you need deployment assistance.
