4ft 40dBi Parabolic Antenna 10.7 - 11.7 GHz

The "PL" Series is a Low-VSWR version of the Standard Parabolic antenna which minimize echo distortion for less noise on the system. 1.2 m | 4 ft Unshielded Antenna, single-polarized, 10.700–11.700 GHz

General Specifications
Antenna Type	PL - Standard Parabolic, Low VSWR Unshielded Antenna, single-polarized
Diameter, nominal	1.2 m \| 4 ft
Polarization	Single

Electrical Specifications
Beamwidth, Horizontal	1.6 °
Beamwidth, Vertical	1.6 °
Cross Polarization Discrimination (XPD)	30 dB
Electrical Compliance	US FCC Part 101B
Front-to-Back Ratio	46 dB
Gain, Low Band	40.1 dBi
Gain, Mid Band	40.5 dBi
Gain, Top Band	40.9 dBi
Operating Frequency Band	10.700 – 11.700 GHz
Radiation Pattern Envelope Reference (RPE)	3214E
Return Loss	28.3 dB
VSWR	1.08

Mechanical Specifications
Fine Azimuth Adjustment	±15°
Fine Elevation Adjustment	±20°
Mounting Pipe Diameter	115 mm \| 4.5 in
Net Weight	54 kg \| 119 lb
Side Struts, Included	1 inboard
Side Struts, Optional	1 inboard
Wind Velocity Operational	110 km/h \| 68 mph
Wind Velocity Survival Rating	200 km/h \| 124 mph

Wind Forces At Wind Velocity Survival Rating
Angle α for MT Max	-130 °
Axial Force (FA)	3881 N \| 872 lbf
Side Force (FS)	552 N \| 124 lbf
Twisting Moment (MT)	1236 N•m
Weight with 1/2 in (12 mm) Radial Ice	130 kg \| 287 lb
Zcg with 1/2 in (12 mm) Radial Ice	346 mm \| 14 in
Zcg without Ice	203 mm \| 8 in

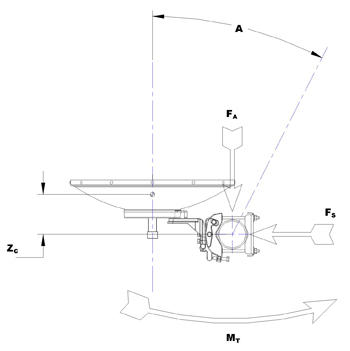

Wind Forces At Wind Velocity Survival Rating Image

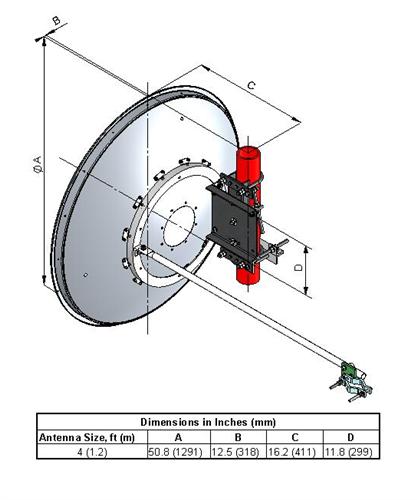

Antenna Dimensions And Mounting Information
