Pigtails, Terminations & Tees, Bulkhead Adapters




     NOTE: It's not always legal or even recommended from a performance boosting perspective to attach external antennas arbitrarily. A proper RF Wireless link budget might be required to prevent performance degradation or to abide by legal regulatory limits. Please contact us if unclear about this word of caution!





Cellular 3G/4G Modems (Express, PCMCIA, USB Modems)

Use these antenna adapters to connect cellular 3G and 4G (WiMax, LTE) modems to external antennas, amplifiers or repeaters. Please contact us if not sure what exactly you need. Indicate what device you have and what you are trying to do and we will suggest what hardware you need to improve your signal.

Search 3G/4G Data Modem

Search Cellular Antennas

Buy Cellular Magnet Mount Antenna w/ Adapter (this Kit has everything you need use dropdown to select card)

Buy Cellular 3G/4G Modem Antenna Pigtail (to connect external antennas)

Data Card or Phone Model Number Adapter Part # Port Type Port Type, Position or Style
AT&T Branded - Cellular Data Cards
AT&T Mobile Hotspot Elevate 4G (LTE) WA-1113 TS9 MIMO Antenna
AT&T USBConnect Momentum 4G (LTE) 359921 TS9 MIMO Antenna
AT&T USBConnect Turbo/ LG LUU-2100T1
AT&T USBConnect Velocity/ Option iCON 461
AT&T USBConnect Lightning/ Sierra Wireless USB305 359921 TS9
AT&T USBConnect Quicksilver/ Option iCON 322 359912 SSMB-Nano
AT&T USBConnect Mercury/ Sierra Compass 885 359927 TS9 Side Port
AT&T USBConnect Adrenaline/ LG AD600 WA-1025
Audiovox (UTStarcom) - Cellular Data Cards
PC3200 AirCard 359917 MC Card End
PC3220 AirCard 359917 MC Card End
PC3320 AirCard 359912 SSMB-Nano End
PC5220 AirCard 359917 MC Card End
PC5740 AirCard None*   No Port
PC5750 AirCard 359919   Side Port
UM150 359921 TS9 Bottom Plug
Axesstel - Cellular Data Cards
MV100 Series: MV110/110N (450MHz), MV120/MV120N (800MHz), MV130/MV130N(1900MHz), MV140/MV140N (800/1900MHz) RFWADPAX1FMEM   Learn more
MV200 Series: MV210 (450MHz), MV220 (800MHz), MV230 (1900MHz), MV240 (800/1900MHz)     Learn more
MV400 Series: MV410 (450MHz), MV420 (800MHz), MV430 (1900MHz), MV440 (800/1900MHz), TX240G ADPTNCMNF (adapter to allow use of N-Male cable or contact us for TNC-Male/N-Male cable) TNC-Female Learn more
MV500 series: MV510 (450MHz), MV520 (800MHz), MV530 (1900MHz), MV540 (800/1900MHz) RFWADPAX5FMEM   Learn more
EU230
Cricket - Cellular Data Cards
Cricket A600 359921
Cricket UM185C (Pantech UM-185C) WA-1071
Cricket EC1705 (Huawei) WA-1025/ CRC9
C-motech - WiMax Data Cards
U300/ CMU300 (PCS/WiMax) - Franklin Wireless, Clear None*   Learn more
U301 - Clear None*
Clearwire - Clear Modems
Clear Spot Apollo MS_147_PIG Hirose MS-147 Available with FME-Male or N-Female Ends
Clear 4G USB Modem (PXU-1900) MS_147_PIG Hirose MS-147 Available with FME-Male or N-Female Ends
CLEAR Hub Express (Gemtek WIXFBR-131) PIGRPSMAM-NF-002 RP SMA Female (Jack)/ Reverse Polarity SMA Can also get RPSMA-M/N-F adapter.
Clear Stick Atlas PIGTS9_359921 TS-9
Clear Modem with WiFi (Gemtek WIXBR-117) PIGUFLFNF U.FL

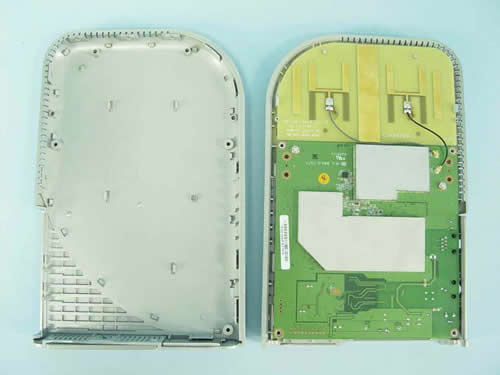

Clear Series G Modem (Gemtek WIXB-175) PIGUFLFNF U.FL
Ericsson - WiMax Data Cards
MD400G
Franklin Wireless - Cellular Data Cards
CDU-550 USB None*
CDU-680 USB IAC106
CDU-650 USB 359923   Side Port
U300/ CMU300 (PCS/WiMax) - C-Motech, Clear None*   Learn more
U600 (CDMA/WiMax) 3G Port - WA-1091
4G Port - WA-1025
  Buy Kit
Huawei - Cellular Data Cards
EC360, EC168, EC228, E180, E170, E1550, E160E, E166, E170, E172, E176, E180, E216, E219, E220, E230, E270, EC500, E510 Info 359912 SSMB-Nano AWS Antenna
E166 WA-1025
E630, E620, E612, EC321 ---- E156G, E160G, E600, E612, E618, E620, E630, E660A, EC228, EC301, EC321, EC351 K4505. OPTUS Mobile Broadband Modem (Huawei E169) CRC9 CRC9
UMG-181 (T-Mobile webConnect USB laptop stick) IAC102
E156G (3 UK)
B932, B933, B970 3G Router SMA-female SMA-female ADPSMAFNF: SMA-female/N-Female adapter to connect to N-Male cables
BM625, BM632, BM635, BM632a, BM622, BM652 WiMax CPE CRC9   Order WiMax Antenna Kit
Huawei EC1705 (Cricket) WA-1025/ CRC9
Huawei E5786 TS9 TS9 Order single or Dual TS9 pigtail or antenna
Kyocera / Qualcomm - Cellular Data Cards
KPC 650 Data card 357014   End Plug
KPC 680 Data Card 357016   Side Plug
LG - Cellular Data Cards
LG LUU-2100T1 (AT&T USBConnect Turbo)
LG VL-600 (Verizon LTE) PIG-VL-600   NOT Designed for Frequent Re-Insertions
Motorola - Cellular/WiMax Data Cards
USBw 100 None*
USBw 200
Novatel Wireless (Merlin) - Cellular Data Cards
MCD3000 359909 Hirose MS-147
C201 None*   No Port
EX720 359918 Hirose MS-151 Side Port
G100 359916   End
G2000 359916   End
G301 359912 SSMB-Nano Side Plug
S620 359918 Hirose MS-151 Side
S720 359918 Hirose MS-151 Side Port
U630 359918 Hirose MS-151 Side
U730 359918 Hirose MS-151 Side
USB720/ U720 359909 Hirose MS-147 Top Plug
USB727/ U727 359921 TS9 Side Port
USB760/ MC760/ U760 359927 TS9 Side Plug
V620 359918 Hirose MS-151 Side
V640 359918 Hirose MS-151 Top Plug
V740/ U740 359918 Hirose MS-151 Side Plug
XU870 359918 Hirose MS-151 Side Plug
PC770 359921 TS9
C777 359921 TS9
MC950D, X950D
MC998D
MiFi 4510L (Verizon Wireless 4G LTE Mobile Hotspot) WA-1107
MC551, USB551L, Verizon Wireless 4G LTE USB Modem 551L WA-1095
Option - Cellular Data Cards & Fixed Cellular Terminals
GT-Max, GT Ultra, GT Ultra Express 359917 MC-Card Side Plug
iCON 225, 510 359912 SSMB-Nano
Globesurfer III 359917 MC-Card Side Plug
Globesurfer X.1
GE442 (T-Mobile)
iCON 322 (AT&T USBConnect Quicksilver)
iCON 451, 452
iCON 461 (AT&T USBConnect Velocity)
iCON 505, 505M
Pantech - Cellular Data Cards
PX-500 359919   Side Port
UM175 359927 TS9 Side Port
UM185c (Cricket) WA-1071
Pantech UML290 4G LTE USB Modem WA-1071
Samsung - WiMax Data Cards
SWC-E100 express (WiMax) 359921 TS9 Side Port
SWC-U200 USB (WiMax) - Yota
Sierra Wireless - Cellular Data Cards
AirCard 300 359912 SSMB-Nano End
AirCard 3300 359917 MC Card
AirCard 350 359912 SSMB-Nano End
AirCard 5220M 359917 MC Card
AirCard 550 359912 SSMB-Nano End
AirCard 555 359912 SSMB-Nano End
AirCard 580 359917 MC Card End
AirCard 595 359923   Top Plug
AirCard 595u 359924   Side Plug
AirCard 597u 359927 TS9 Side Port
AirCard 597e 359912 SSMB-Nano End Plug
AirCard 598U 359927 TS9 Side Port
727 USB 359927   Side Port
AirCard 750 359912 SSMB-Nano End
AirCard 775 359912 SSMB-Nano End
AirCard 850 359912 SSMB-Nano End
AirCard 860 359912 SSMB-Nano Side Port
AirCard 875 359924 SSMB (long) End Plug
AirCard 875U 359912   End Plug
AirCard 880/ 881 359924 SSMB (long) End Plug
AirCard 881u 359924 SSMB (long) Side Port
Aircard 885u Compass IAC002/ 359927 TS9 Side Port
Compass 888 USB 359927 TS9
USBConnect Mercury USB Modem IAC097
Aircard 402 359921 TS9
AirCard USB 301, AirCard USB 302 359921 TS9
AirCard USB305 (AT&T USBConnect Lightning) 359921 TS9
AirCard USB 306, AirCard USB 307 (HSPA+) 359921 TS9
AirCard USB 308, AirCard 310U 359921 TS9
AirCard 312U 359921 TS9
AirCard 503 (HSPA+) 359921 TS9
AirCard 250U (Clear 4G+ WiMax USB) PIG_CLR250U(_2)** TS9 **Special pigtail version needed to hook up dual external antennas.
AirCard 802S (Sprint Overdrive Pro) PIGAC802S
AirCard 753S or 754S Mobile Hotspots 359921 TS9 MIMO Antenna
AirCard 313U or 320U USB Modems 359921 TS9 MIMO Antenna
AirCard 312U USB Modem 359921 TS9 MIMO Antenna
Sony / Ericsson - Cellular Data Cards
GC57 card (Vodafone) 355014   Antenna Replacement
GC82 data card 355011   Antenna Replacement
GC83 data card 355011   Antenna Replacement
GC85 data card 355011   Antenna Replacement
GC89 data air card 355015   Antenna Replacement
EC400 (no GPS) 359912 SSMB
EC400G (has GPS) 359912 SSMB 1 cellular + 1 GPS antenna port
PC300 359912 SSMB-Nano
Sprint/ Touchpoint - Cellular Data Cards
CF2031 data air card 359905   Antenna Replacement
T-Mobile Branded - Cellular Data Cards
T-Mobile webConnect USB laptop stick Info IAC102   Huawei E181 (UMG181 - uses Huawei EM770U module)
T-Mobile webConnect Jet USB laptop stick IAC102   Huawei E1691 (UMG1691 - uses Huawei EM770U module)
T-Mobile webConnect Rocket USB laptop stick Info (HSPA+, 4G-speeds, 850, 900, 1800, 1900, 2100, 1700 MHz) IAC102   Huawei E1831 (UMG1831 - uses Huawei EM770U module)
T-Mobile 4G Mobile Hotspot (ZTE MF61) 359927
Ubee Interactive - WiMax Data Cards
Ubee PXU1900 (Clear 4G Mobile USB) RFWADPPXU1900NF
Ubee U1901 (Sprint U1901 4G Modem) RFWADPPXU1900NF
UTStarcom - Cellular Data Cards
UM150 359921 TS9 Bottom Plug
PC5750 IAC001
PC5740 IAC079
ZTE - Cellular/ WiMax Data Cards
AD3700
MF330, MF622, MF627, MF637 359912 SSMB-Nano
MF668 (Rogers HSPA+ Rocket Stick) IAC102 TS9
MF300, MF622 None*
MF332   M198
MF626, MF636
TU25 USB Wimax (Xohm) U.FL
ZTE MF61 (T-Mobile 4G Mobile Hotspot) 359927

* for cellular data card modems without external antenna ports consider using a passive antenna coupler. Alternatively consider using a cellular WiFi router and placing the router where the cellular signal is strongest then boost the WiFi signal. It's much easier to boost or distribute WiFi from placement location to wherever you need the LAN/WLAN. With this method you may even put the cellular modem/router combo outdoor if you use ruggedized/weatherized enclosures.

Top



Cellular Routers, Gateways & Fixed Cellular Terminals

Cellular Routers, Cellular Gateways & Fixed Wireless Terminals Cellular/ WLAN Antenna Port Type
Airlink/ Sierra Wireless
Airlink Raven X, XT & XE SMA Female x2
Airlink Pinpoint XT SMA Female
Airlink MP595W, 880W, 881W & Pinpoint X TNC Female, SMA Female
Axesstel
AXW-D800 (TX: 824.64~848.37 MHz RX: 859.64~893.37 MHz),
AXW-D1900 (TX: 1850.00~1909.95 MHz RX: 1930.00~1989.95 MHz)
TNC female (right antenna for Transmit/Receive, left antenna for diversity receive only)
MV110 (Tx: 452 ~ 458 MHz Rx: 462 ~ 468 MHz),
MV140 (Cellular Rx: 869 ~ 894 MHz, Cellular Tx: 824 ~ 849 MHz, PCS Rx: 1930 ~ 1989 MHz PCS Tx: 1850 ~ 1909 MHz)

MB330
MU330
MU430, MV410 (450MHz), MV420, MV430, MV440 (800/1900MHz) TNC female
MV400i Seris, MV400 Series
MV500
AxessBox
TG130, TX240G
Bluetree
BlueTree IP 6600 SMA Female x 2 (1 primary cellular & 1 diversity cellular antenna port)
BlueTree IP 5600 SMA Female x 3 (1 primary cellular, 1 diversity cellular and 1 GPS antenna port)
Cradlepoint
Cradlepoint CRT350 USB Rotuer

Internal

Cradlepoint PHS300 Personal Hotspot USB Router Internal
Cradlepoint CTR500 MC Connector (use for example MC/N-Male)
Cradlepoint MBR1000 Fixed
Cradlepoint MBR1200 MC Connector (use for example MC/N-Male)
Cradlepoint MBR1400 RP-SMA Female (3x MIMO)
D-Link
DLink DIR450 EvDO Router
DLink DIR451 UMTS/HSDPA
Junxion Box
Junxion Box
JB120g (Wireless/Ethernet)
SMA Female
Kyocera
Kyocrea KR1 RP-SMA Female
Kyocera KR2 Fixed
Linksys
Linksys AT&T/Sprint/VZW Cellular Router SMA
Netcom
Telus Smart Hub (Netcom 3G8WV-TS) SMA-Female
Option
Option Globesurfer III Router
Pepwave/ Peplink
Pepwave MAX Mobile Router 2x RP-SMA Female
Proxicast
Proxicast LAN-Cell 2 RP-SMA Male
Sierra Wireless

Sierra Wireless AirLink GX440

3x SMA-Female Antenna Connectors
(RF, GPS, MIMO LTE or Rx
Diversity HSPA/HSPA+)

Recommended Antenna: GPSDM700/2500FFS (need 2 SMA-Female/FME-Male adapters)

TopGlobal
TopGlobal MB5000c No WLAN
TopGlobal MB6000 Internal
TopGlobal MB6800 RP-SMA Female
TopGlobal MB8000 SMA Female
TopGlobal MB9000 SMA-Female

Top


Wireless Access Points


Radio Manufacturer & Model Mating Connector
3Com
Airconnect Access Point 3CRWE747A
MMCX
3CRWE820096A, 3CRWE870075A, 3CRWE91096A, 3CRWE825075A, 3CRWE875075A, 3CRWE725075A RP-SMA
3Com 8200, 8700, 8250, 8750, and 7250 SMA Male
ACKSYS
WL-COMETH, WL-ACCESS, WL-DONGLE, WL-LINK, WL-ABOARD/S™, WL-ABOARD/N™, WL-IDA/S™, WL-IDA/N™ RP-SMA
Actiontec
R3010WAP, GT701AP and AU802C Access Points RP-SMA
GT704-WR, R3010SUW and R3010UW Wireless Routers RP-SMA
AeroComm
ConnexLink 2.4 GHz Model (CL5124-200-232) RP-SMA
ConnexLink 900 MHz Model (CL4490-1000-232) RP-SMA
Airespace
Airespace® 1200 / 1200R Access Points RP-TNC
AirMagnet
AirMangnet PC Cards MMCX
Amtron
MW251 RP-SMA
Aperto Networks
PW600S-25-01, PW600S-33-01, PW600S-35-01, PW600S-53-01, PW600S-58-01 PackWave Wireless Bridge
PWR2500, PWR3300, PWR3500, PWR5300, PWR5800
PackWave Base Station Radio
N-Male
Apple
Airport Extreme Base Station MCX
Airport Card (Buffal/ Broadcom) MC
Aruba Networks
AP 70 RP-SMA
Avalan Wireless
AW900XTR Outdoor 900MHz Long Range RP-TNC-Female
Avaya
Avaya MC Card
Apple
Apple PC Card (not Airport Extreme Base Station) MC Card
G5 Mac MCX-Plug
Belkin
F5D6001, F5D7000, F5D7001 PCI Card RP-SMA
Blitzz
BWA611 NetWave, BWA611B NetWave, BWA711 Super G,
BWA721G, BWI605 NetWave, BWI715 Super
RP-SMA
Bluesocket
F5D6001, F5D7000, F5D7001 PCI Card RP-SMA
Breezecom/ Alvarion
AP/SA/WB-10D RP-SMA
BreezeNET Pro.11 Access Point, Station Adapter, Workgroup Bridge 10-D RP-TNC
Buffalo
AirStation WHR-G54S, AirStation WHR-HP-G54S, AirStation™ WLI-TX4-G54HP RP-SMA
AirStation WBR-G54 MC Card
WLI-CB-G54A AirStation™ PCMCIA Card, WLI-PCM-L11GP AirStation™ PCMCIA Card, WHR3-G54, WLA-G54 MC Card
WLA-G54C, WBR2-B11, WLA-L11G, WLI-PCI-G54, WLI-TX1-G54, WRB-G54K, WLM2-G54 MC Card
Cisco Aironet
Cisco Aironet 350 Series Wireless Bridge, Aironet Bridge 340 RP-TNC
Cisco Aironet 1200 Series Access Point w/ Removable Antenna RP-TNC
Cisco AIR-AP352E2R-x-K9 RP-TNC
Cisco AIR-BR1310G-x-K9-R RP-TNC
Cisco AIR-PCI35x RP-TNC
Cisco Aironet® PC Card 351 (AIR-PCM351-RF) MMCX
Cisco AIR-LMC35x MMCX
Cisco WAP4400N Wireless-N Access Point with Power Over Ethernet non-detacheable
Clarion Wireless LAN
Clarion M10 SMA Male
CNet Technology
CWP-854 Wireless-G PCI Adapter RP-SMA
Cognio
Cognio® PC Cards MMCX
Compaq
PCI Card RP-SMA
Colubris Networks
CN320, CN330, CN1250 , CN-3300 RP-SMA
MAP-320, MAP-330 RP-SMA
MSC-3200, MSC-3300, MGW-1250 RP-SMA
MAP-320R, MSC-3200R, MSC-3300R RP-N Plug
MAP-330R N-Male
D-Link®
Air DWL-520, DWL-900AP, DI-713, DI-714, DI-614, PCI 520+ RP-SMA
DI-514, DI-714P+, DI-824VUP, DWL-800AP+, DWL-810+, DWL-G700AP, DWL-G800AP RP-SMA
DI-524 AirPlus™ G RP-SMA
DI-624 (AirPlus Xtreme G™ 2.4GHz) RP-SMA
DPG-2000W (AirPlus G™ 2.4GHz) RP-SMA
DWL-G810 (AirPlus Xtreme G™ High Speed 2.4GHz) RP-SMA
DWL-G510 (AirPlus G™ 2.4GHz) RP-SMA
DWL-G520 (AirPlus Xtreme G™ High Speed 2.4GHz) RP-SMA
DWL-1000AP+ (Air Premier™ 2.4GHz) RP-SMA
DWL-2000AP (AirPlus Xtreme G™ High Speed 2.4GHz) RP-SMA
DWL-2100AP (AirPlus Xtreme G™ High Speed 2.4GHz) RP-SMA
DWL-3200AP (Air Premier™ Managed AP) RP-SMA
DWL-8200AP (Air Premier™ Managed Dualband AP) RP-SMA
DWL-1750 (Air Premier™ Outdoor 2.4GHz 802.11b Wireless Bridge/Router) RP-N Plug
DWL-1700AP (Air Premier Outdoor 2.4GHz 802.11b Wireless Access Point) RP-N Plug
DAP-3520 AirPremier N Dual Band Outdoor POE Access Point N-Female
DAP-2553 AirPremier N Dual Band PoE Access Point
DAP-2590 AirPremier N Dual Band PoE Plenum-Rated AP
DAP-1360 Wireless N Range Extender 2x RP-SMA
Dell
Truemobile™ 1150 PC Card MC Card
DrayTek
Vigor2600VGi RP-SMA
Vigor2600We RP-SMA
Edimax
EW-7207APb, EW-7207APg, EW-7206APb Access Points RP-SMA
BR-6104Wb, BR-6114Wg Routers RP-SMA
EW-7126, EW-7128g PCI Cards RP-SMA
EnGenius
NL-2511MP PLUS Mini-PCI Adapter U.FL
NL-3054CB PLUS Aries2 Mini-PCI Adapter U.FL
NL-3054MP PLUS High Speed Wireless Mini-PCI Adapter U.FL
NL-5354MP PLUS Aries2 Dual Band Wireless Mini-PCI Adapter U.FL
NL/SL-2511CD PLUS EXT2 PC Card MMCX
NL/SL-2511CD PLUS EXT2 Mercury PC Card MMCX
NL-5354MP MMCX
NL-5354MP PLUS Aries2 MMCX
NL-2611CB3 PLUS Multi-Client Bridge / Client RP-TNC
NL-2611CB3 PLUS RP-TNC
NL-2511BG PLUS N-Male
EUB-362 EXT Wireless USB Adapter RP-SMA
EOC-5610 RP-SMA Female
Enterasys RoamAbout / Cabletron
RoamAbout® AP4102, RoamAbout® AP1602 Access Points RP-SMA
Fortinet
FortiWiFi-60 Access Point RP-SMA
FreeWave
FGR09TS, FGR09CS, FGR09CSU, FGR-5013008 and FGR09SE 900 MHz Spread Spectrum Radios SMA Male
IM-510X008 and IM-500X008 2.4 GHz Ranger Series Radios SMA Male
FGRM-501X005 and FGRM-511X005 900 MHz OEM Modules MCX-Plug (Male)
FGR-115RC, FGR-115WC and FGR-115RE 900 MHz Wireless Radios N-Male
IM-800X009, IM-8001009 and IM-900X009 2.4 GHz Wireless Radios N-Male
IM-510X007 and IM-500X007 2.4 GHz Wireless Radio RP-SMA
GRE
GRE America Gina RP-SMA
Harris
SecNet11 SMA Male
Hawking
HWR54G, HWBA54G, HWP54G RP-SMA
Hawking HW2R1 Dual Radio Smart Repeater RJ-SMA
HWUN3 - Hi-Gain™ Wireless-N Network USB Adapter with Upgradable Antenna SMA
HWUN2 - Hi-Gain Wireless-150N USB Adapter with Upgradeable Antennas SMA
HWUN1 - Wireless-300N USB Adapter with Upgradeable Antennas SMA
Honeywell
Honeywell Wireless Limit Switches RP-SMA Jack (Female)
HyperLink Router
HyperLink Routers (formerly SR2400) RP-SMA
Hewlett-Packard
ProCurve® 420WL Access Point RP-SMA
IBM
IBM Wireless PC Card MC
IBM Wireless AP500 MC
Intel
Intel® PRO/Wireless AP WEAP2011BK RP-BNC
Intel® PRO/Wireless AP WPCI5000 RP-SMA
Intellinet
All wireless routers and access points with removable antennas RP-SMA
Linksys
Linksys® WAP11, WRT54G, WRT54GS, WAP54G, BEFW11S4, WSB24 Signal Booster RP-TNC
Linksys® WET11, WET54G, WMP11 (PCI), WPS11, WMP54G, WMP54GS, WRT54GC RP-SMA
Linksys® WET54GS5, WPS, WRV54G RP-SMA
Linksys WCG200 Wireless-G Cable Gateway [To use RP-SMA WiFi Range Booster Amplifier use RP-SMA-Female/TNC-Male connector]. See other connectors. single antenna version -> SMA, two antenna version -> TNC
MaxStream
24XTend™ 2.4 GHz OEM RF Module RP-SMA or MMCX
9XStream™ 900 MHz OEM RF Module RP-SMA or MMCX
9XTend™ 900 MHz OEM RF Module RP-SMA or MMCX
XStream-PKG-R™, XStream-PKG-U™, XStream-PKG-E™ and XStream-PKG-T™ 900 MHz/2.4 GHz RF Modems RP-SMA
XPress™ 900 MHz Ethernet Bridge RP-TNC
9XTend-NEMA™ 900 MHz RF Modem MMCX
9XTend-PKG-R™, 9XTend-PKG-U™ and 9XTend-PKG-E™ 900 MHz RF Modems RP-SMA
9XCite™ 900 MHz OEM RF Modems RP-SMA
9XCite-PKG-R™ and 9XCite-PKG-U™ 900 MHz RF Modems RP-SMA
XBee™ and XBee-PRO™ 2.4 GHz OEM RF Modules U.FL
XBee-PRO PKG-R™ and XBee-PRO PKG-U™ 2.4 GHz RF Modems RP-SMA
Meru Networks
Meru Networks® AP200 RP-SMA
Microwave Data Systems
MDS iNET 900™ TNC-Male
Motorola
Motorola® WR850G Wireless Router RP-SMA
Motorola® WA840G, WPCI810G RP-SMA
Motorola® / Nextel® iM1100 Wireless Modem MMCX Straight
Motorola® MX360, STX, HT1000, MT2000 and Visar 2-Way Radios SMA Male
Navini
Ripwave Modem MCX-Plug (Male)
Netgear
FM114P, FVM318, FWG114P, MA311, ME101, ME103, WG302 RP-SMA
WG311 / WG311T Wireless PCI Adapter RP-SMA
WG602 Wireless Access Point RP-SMA
WGT54 Non-detacheable
Nextel
Motorola / Nextel® iM1100 Wireless Modem MMCX Straight
Nokia
Nokia PC Card SMA Right Angle
Nomadix
AG-2000w-Wireless Gateway™ RP-SMA
Nortel
2230 Access Point RP-TNC
2231 Access Point RP-TNC
Nurit
Nurit® 3010 Wireless Credit Card Terminal TNC-Male
Proxim
Proxim ORiNOCO® PC Card Gold (8470-FC/8470-WD/8420-WD), PC Card Silver (8471-WD) MC Card
Proxim ORiNOCO® 802.11a/b/g PCI Card #8482-WD MCX-Plug
Proxim RL/2 Bridge , RL/2 Bridge PCI Cards RP-SMA
Proxim RL/2 PC Card MMCX
Airconnect AP 3CRWE747A, Proxim® Harmony 802.11 PC Card MMCX
Proxim Harmony 802.11 PC Card RP-MMCX
Proxim Harmony 802.11 AP, Stratum MP RP-TNC
ORiNOCO® Mini-PCI Components U.FL
Proxim MP.11, QB.11, MP.16 N-Female
Proxim QB8150 MIMO Radios N-Female
QPCOM
QP-W102 (11b access point) RP-SMA
QP-WR804B (11b wireless internet router) RP-SMA
QP-WR914G (11g wireless internet router) RP-SMA
QP-W2400GP(11g PCI adapter) RP-SMA
QP-WP2000( 11b PCI adapter) RP-SMA
Rosewill

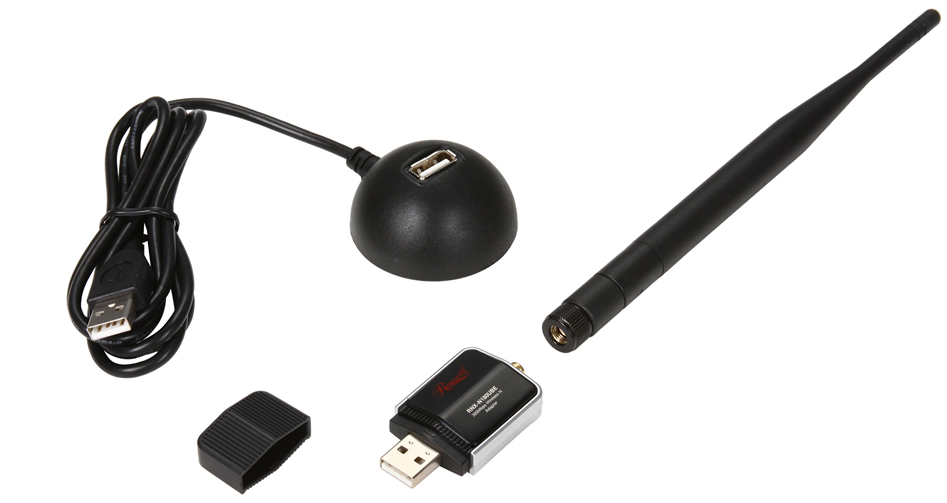

Rosewill USB 2.0 External 5dBi Antenna Wireless Adapter

RNX-N180UBE antenna

Replacement Atennas
  Surface Mount Antenna: 1ft cable/ Use SMA-Female/RP-SMA-Male adapter.
  Magnet Mount Antenna: 10ft cable/ Use SMA-Female/RP-SMA-Male adapter.
  Outdoor Omni Antenna: Select N-Male/RP-SMA-Male LMR400 Cable
USB Dongle has RP-SMA-Female port.
5dBi Antenna has RP-SMA-Male port.
Samsung
Samsung MagicLAN® PC Card MMCX
PCI Card, PC Card, Access Point RPSMA-Female
Senao
NL-2611CB3 PLUS Multi-Client Bridge / Client RP-TNC
NL-2611WD3 PLUS Long Range Wireless Dongle RP-TNC
NL-3054CB3 PLUS Deluxe RP-TNC
NL-3054PCI Aries SMA Male
NL-2511AP PRO PLUS TNC-Male
NL-2511CD PLUS EXT2 PC Card MMCX
NL-2511CD PLUS EXT2 Mercury PC Card MMCX
WMP-3000 Mini-PCI U.FL
NL-5354MP PLUS Mini-PCI U.FL
NL-5354MP PLUS Aries2 Mini-PCI U.FL
NL-3054MP PLUS Mini-PCI U.FL
Siemens
SpeedStream® SS1024 RP-SMA
CONNECT2AIR™ AP-600RP-USB, CONNECT2AIR™ E-1100 PCI Card GRE: Gina 2015 AP/Bridge RP-SMA
SmartBridges
AirPoint XO N-Male
AirPoint XO2 N-Male
AirPoint PRO N-Male
AirPoint PRO TOTAL N-Male
AirPoint Nexus SB3210 N-Male
AirPoint Indoor RP-SMA
AirBridge Indoor RP-SMA
AirBridge Outdoor N-Male
AirBridge TOTAL N-Male
AirNIC RP-SMA
SMC
SMC AP/Bridge RP-TNC
SMC2552W-G, SMC2582W-B, SMC2586W-G, SMC2602W, SMC2802W, BARRICADE SMC2804WBR, BARRICADE SMC2804WBRP-G RP-SMA
SMC 2655W MCX-Plug (Male)
SMC 2665W MCX-Plug (Male)
SMC2555W-AG, SMC2532W-B, SMC25122-B RP-MMCX
SonicWall
TZ 170 SP Wireless, TZ 170, SonicPoint G RP-TNC
Sony Ericsson® / Cingular Wireless
Sony Ericsson S/E Type 237
Sputnik
Sputnik AP 160 RP-SMA
Sputnik AP 200 N-Male
Symbol
Symbol AP300 Access Point (802.11a Radio) RP-SMA
Symbol AP300 Access Point (802.11b/g Radio) RP-BNC
Symbol AP-3020, AP-3021, AP-4131 Access Points RP-BNC

Symbol AP-5131 Access Point. See Antenna Specification Guide.

WI1 module IF: Mini PCI
WI1 chip1: Intersil ISL3886
WI1 chip2: Intersil ISL3692
WI1 802dot11 protocols: abg
WI1 antenna connector: U.FL, RP-SMA
WI2 module: unknown
WI2 module IF: Mini PCI
WI2 chip1: Intersil ISL3886
WI2 chip2: Intersil ISL3692
WI2 802dot11 protocols: abg
WI2 antenna connector: U.FL, RP-SMA
FCC ID: H9PAP5131D
Industry Canada ID: 1549D-AP5131D

To hook up internal chipset use U.FL to N-Female adapter. To convert N-Female to RP-SMA-Female (to use existing RP-SMA-Male antennas use the N-Male/RP-SMA-Female adapter).

RP-SMA-Female
Symbol LA-3021 Client Adapter PC Card MMCX
Trango Broadband Wireless
M2400S RP-SMA
M900S RP-SMA
Tranzeo
XI-325, XI-325H, XI-325HP MMCX
Trapeze Networks
Mobility Point™ 352 (MP-352) and Mobility Point™ 372 (MP-372) SMA Male
TEW-203PI, TEW-228PI, TEW-403PI and TEW-423PI Wireless PCI Adapters RP-SMA
TEW-223PI and TEW-303PI PCI Network Adapters RP-SMA
TEW-231BRP and TEW-431BRP Wireless Routers RP-SMA
TEW-2K1 Wireless Router / PC Card Kit RP-SMA
TEW-435BRM Wireless Firewall Router RP-SMA
Toshiba
Toshiba AP MC Card
Ubiquiti Networks
Ubiquiti Cardbus, Litestation2/ SR2/ SR5 MMCX
U.S.Robotics
USR2450 Access Point Wi-LAN:AWE 45-24 RP-TNC
USR8022 RP-SMA
USR5450 RP-SMA
USR2216, USR5416, USR5430, USR8054, USR9106 RP-SMA
Vivato
VA2200 AP/Bridge RP-TNC
WatchGuard
Firebox SOHO 6TC Wireless RP-SMA
Firebox SOHO 6 Wireless RP-SMA
WaveAccess
WaveAccess 132 RP-SMA
Westell
VersaLink™ 327W RP-SMA
Wi-LAN
Wi-LAN AWE22/45 RP-TNC
Wi-LAN AWE120-24 TNC-Male
Wi-LAN AWE120-58 N-Male
Zcomax/Zcom
Zcomax® XI-300/325/325H/325HP/325HP2/1000 RP-MMCX
Zcomax® WL420/431/450, XG-1000, XI-626/1500/1500H/1500HP/1500HP2/3000 RP-SMA
XG-900, XI-625 Mini-PCI Components U.FL
Zoomair
Zoomair® PC Card 4105/4103 RP-SMA
ZyXEL
ZyAIR B-1000 Access Point RP-SMA
ZyAIR B-2000 Access Point RP-SMA
ZyAIR B-3000 Access Point RP-SMA
ZyAIR B-5000 Access Point (U.S. Models) RP-N Plug
ZyAIR B-5000 Access Point (EU Models) N-Male
ZyAIR G-2000 Access Point RP-SMA
ZyAIR B-101 PC Card MMCX
Prestige 660HW ADSL Gateway RP-SMA


Top


Embedded Modules

Device Link to Antennas, Pigtails, Connectors

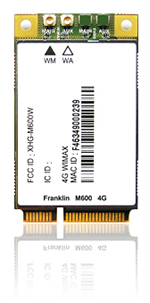

Franklin M600W WiMax Mini PCI Express Module

Franklin Wireless M600W WiMax Mini PCI Express Module



Radio Frequency WiMax 2.5-2.7GHz
Dimensions 30(w)x54(h)x5.00 (mm)
Weight 10g
Environmental Operating Temp: -20oC to 60oC,
Storage Temp: -30oC to 70oC,
Power Dissipation 400mA nominal Current @ 3-3.6VDC Supply. Idle & LP mode Current consumption: 250mA
Datarate WiMax, 38Mbps (downlink), 7 Mbps (uplink)
Hardware Interface USB 2.0
Software Interface AT Commands
External Antennas 2x U.FL External Antenna Ports
Features No CD installation, Auto Installation, Plug and Play
Operating Systems Supported Window7 / Vista / XP
MAC OS X
Linux
Android



Datasheet

Technical/ Sales Inquiry

Intel Centrino Advanced-N + WiMax 6250 Chipset

Intel WiMax 6250

The Intel® Centrino® Advanced-N + WiMAX 6250 (622ANHMW) is an IEEE 802.16e and 802.11a/b/g/n wireless multi–band network adapter that delivers up to 20 Mbps+ downlink, up to 6 Mbps uplink performance over WiMAX, and up to 300 Mbps Tx/Rx over Wi–Fi. This integrated module, embedded in Intel® technology notebooks and netbooks, provides flexible and convenient connectivity to both WiMAX and Wi–Fi networks

Antenna Interface Connectors: Hirose U.FL-R-SMT (same connector used for Ultimate-N 6300, Advanced-N 6200)

U.FL female to N-Female Connector

2.4 GHz WiMax Antennas (802.11b/g/n)

2.5-2.7 GHz WiMax Antennas

3.5 GHz WiMax Antennas

5 GHz WiMax Antennas (802.11a)

Info Note that U.FL connectors are NOT designed for frequent connect-reconnects!

Intel 5150 WiMax, Wireless-N Combo Card

Intel WiMax/WiFi Link 5150 (AGN), WiMax/WiFi Link 5350

WiMax/WiFi Link 5150

802.16e WiMax is an option for several laptops including:

Dell Laptops: Studio 14, 15, 17 & XPS16; Latitude E4300, E6400, E6400 ATG, E6500; Precision M2400, M4400; Vostro 1220, 1520, 1720; Inspiron Mini 10; inspiron 11z;

Lenovo Laptops: ThinkPad SL410, SL510, T400, X301, W500, X201, X201S, T410, T410S, T510, W510; Edge 13;

Samsung: NC10-12PWBK;

Toshiba: Satellite U505-S2008

Fujitsu: LifeBook P8020

Antenna Interface Connectors: Hirose U.FL-R-SMT

U.FL female to N-Female Connector

Info Note that U.FL connectors are NOT designed for frequent connect-reconnects!

Instructions to Remove Dell Laptop WWAN Module

UMTS/HSPDPA or EDGE laptops and netbooks sold by U.S Carriers AT&T: Samsumg Go, Acer Aspire One, HP Mini 110
EVDO RevA or 1xRTT laptops and netbooks sold by U.S Carriers Verizon: Gateway lt, HP Mini 311, HP Mini 110

HP Pavilion DM1, HP Mini 311, Compaq Mini 311 WWAN EVDO HSDPA Module

HP Pavilion, Mini 311, Compaq Mini 311Qualcomm Gobi 2000 WWAN



Buy Magnet Mount Antenna

Buy Freedom Desk Antenna

Uses the Qualcomm Gobi 2000 cellular chipset which uses the U.FL connector. To connect an external antenna you will need (see left for antenna kits):

step1: Remove WWAN module View PDF instructions

step2: Select cellular band antenna. Indoor/outdoor, directional/omni-directional, gain level etc more

step3: Select low-loss cable. For long runs above 20ft recommend LMR400 for shorter runs select RG58 or 195-series cable.

step4: Select pigtail to mate cable to U.FL male on the WWAN module more

step5: Select adapter/connector as needed to mate cable to pigtail if you don't select an N-male cable more

HP Pavilion DM1, HP Mini 311, Compaq Mini 311 WWAN 802.11b/g WLAN Module

HP Pavilion, Mini 311, Compaq Mini 311

step1: Remove WWAN module View PDF instructions

step2: Select WLAN 802.11b/g antenna (2.4GHz)

step3: Select low-loss cable. For long runs above 20ft recommend LMR400 for shorter runs select RG58 or 195-series cable.

step4: Contact us for pigtail

Huawei EM770U w/ T-Mobile 3G AWS band for Dell

Huawei EM770U

Quadband GSM/EDGE and HSDPA/HSUPA 850/1900/1700 (Band II, IV and V) . Uses Qualcomm 6290+F chipset

Hirose U.FL-R-SMT connector more

Acer 5738 Notebook Uses Huawei EM770W 3G Module
Qualcomm Gobi Logo

The following laptops and netbooks use the the Qualcomm Gobi 1000 cellular chipset which uses the U.FL connector:

  • HP Compaq 6735b
  • Lenovo X200,
  • Panasonic Toughbook CF-52,
  • Panasonic Toughbook T8,
  • HP Elitebook 2730p,
  • Panasonic Toughbook W7,
  • Lenovo T500, HP Elitebook
  • 2530p, Acer Aspire One,
  • HP Mini 1000,
  • Panasonic H1,
  • Panasoni U1,
  • OQO Model 2+,
  • Sony P,
  • HP Mini 110



Sierra Wireless AirCard W801 (a.k.a) Sprint Overdrive

Sierra Wireless AirCard W801

Beceem BCSM250 single-chip mobile WiMAX solution and MC5728 (CDMA module with Qualcomm QSC6085 -- see below)

  • CDMA 850/1900 MHz (EVDO RevA)
  • WiMax 2500 MHz
  • GPS 1575 MHz
  • WiFi 2400MHz (802.11b/g)

- View internal photos showing location of Primary & Diversity Antennas. The MC8728 module has U.FL connectors

Sierra Wireless MC5728V

Sierra Wireless MC5728V

PCI Express Minicard Standard Form Factor F2. Uses Qualcomm QSC6085 Chipset. EV-DO RevA, EVDO, CDMA (800/1900MHz).

Uses U.FL connectors for antenna ports. Primary antenna labeled "MAIN" and secondary diversity antenna labeled "AUX"

Toshiba NB100 and Satellite A350 Netbooks With Embedded Mobile Broadband
Toshiba M750 Ericsson F3570G

Series G CLEAR CPE Modem (Gemtek WIXB-175)

Series G Clear Modem

Model # WIXB-175 made by Gemtek Technology. FCC ID #MXFWIXB-175

Discuss External Antennas for Series G Clear CPE

View Model # WIXS-167 Gemtek Outdoor CPE



View wireless module frequency band & power output

View AT&T Certified Data Devices (contact us for external antennas/amplifiers/repeaters)
