RfWel Signal Improvement Solutions Equipment Partner Demo Program
RfWeL leverages its expertise in wireless engineering technologies to provide indoor coverage signal improvement solutions (5G NR, 4G LTE, Wi-Fi, CBRS), custom wireless links, wireless monitoring & control, remote power solutions, wireless site infrastructure, among others.
We provide consultancy in project design, equipment supply, installation/deployemnt, training, test & commissioning for the aforementioned wireless engineering solutions. We also offer a 30-day free trial on select device antenna kits

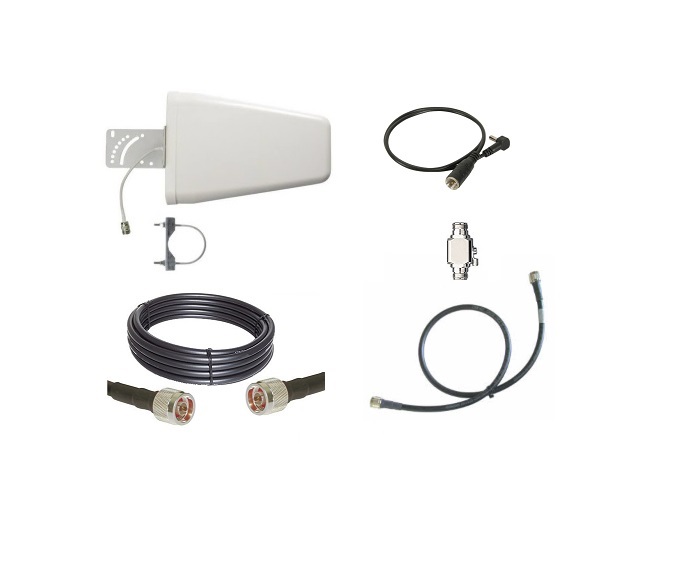

Example of Kit components Setup:
|
| Rfwel Signal Improvements solutions demo program |
RfWeL offers a demo program for clients who are interested in cellular signal improvement solutions. This demo program currently covers 4 types of antenna solutions for LTE: Directional Yagi Antenna Kit, Log Periodic, Panel Antenna & Omni Directional Antenna Kit.
|
|
RfWel Log Periodic Antenna Kit
|
 |
 Features
- Operates at all frequency bands (698-960MHz / 170-2700 MHz)for all US and Canada cellular operators.
- Offers 12 dBi gain.
Package Contents
i) 12 dBi Wide Band log periodic directional antenna (RFWLP072711DNF)
ii) Lightning protection device (TW-LP-N-J-BHJ) and jumper cable (RFWJMP002)
iii) 20 ft 400-series low loss coaxial cable (RFWCAB400NMNM050)
iv) Connectors/ adapters to allow all components to mate with minimal signal attenuation
Application
- For LTE applications
|
|
 Ask a Question
|
|
To Join the RfWel Demo Program. Please click on the link below
|
|
|
RfWel Panel Antenna Kit
|
 |
Features
- Operates at all frequency bands (698-2700MHz MHz) for all US and Canada cellular operators.
- Offers 10 dBi gain.
Package Contents
i) 10 dBi, 698 - 2700 MHz, Directional Panel Antenna (RFWLTWPA10NF)
ii) Lightning protection device (TW-LP-N-J-BHJ) and jumper cable (RFWJMP002)
iii) Connectors/ adapters to allow all components to mate with minimal signal attenuation
iv) 50 ft 400-series low loss coaxial cable (insertion loss <1.9 dB at 698 MHz and <4 dB at 2700 MHz) (RFWCAB400NMNM050)
Application
- For LTE applications
|
|
Ask a Question
|
|
To Join the RfWel Demo Program. Please click on the link below
|
|
|
RfWel Omni Directional Antenna Kit
|
 |
Features
- Operates at all frequency bands (690-2700 MHz) for all US and Canada cellular operators.
- Offers 9 dBi gain.
Package Contents
i) 9 dBi, 690 - 2700 MHz, Omni-directional Antenna (1273-PB)
ii) 400-series low loss coaxial cable (insertion loss <1.9 dB at 698 MHz and <4 dB at 2700 MHz) (RFWCAB400NMNM050)
iii) Lightning protection device (TW-LP-N-J-BHJ) and jumper cable (RFWJMP002)
iv) Connectors/ adapters to allow all components to mate with minimal signal attenuation
Application
- For LTE applications
|
|
Ask a Question
|
|
To Join the RfWel Demo Program. Please click on the link below
|
|
|
RfWel Directional Yagi Antenna Kit
|
 |
Features
- Operates at all frequency bands (698-2700MHz MHz) for all US and Canada cellular operators.
- Offers 12 dBi gain.
Package Contents
i) 12 dBi, 698 - 2700 MHz, Directional Yagi Antenna (RFWY072712D)
ii) Lightning protection device (TW-LP-N-J-BHJ) and jumper cable (RFWJMP002)
iii) Connectors/ adapters to allow all components to mate with minimal signal attenuation
iv) 50 ft 400-series low loss coaxial cable (insertion loss <1.9 dB at 698 MHz and <4 dB at 2700 MHz) (RFWCAB400NMNM050)
Application
- For LTE applications
|
|
Ask a Question
|
|
To Join the RfWel Demo Program. Please click on the link below
|
|
| |
|
|
| |
