Low loss cables and pigtails are designed for efficient RF signal transmission with minimal attenuation. They provide reliable performance, reduced signal loss, and consistent impedance for wireless, telecom, and test applications.

  • Insertion Loss: Low attenuation per meter (e.g., ≤ 0.5 dB/m @ 2.4 GHz)
  • Frequency Range: DC up to 6-18 GHz (depending on cable type)
  • Impedance: 50Ω (standard RF)

main content

Low-loss cables and pigtails are designed for efficient RF signal transmission with minimal attenuation. They provide reliable performance, reduced signal loss, and consistent impedance for wireless, telecom, and test applications.

text images content

At RfWeL we offer both standard stock and custom built low loss and ultra low loss cables for your signal transmission needs. For RF installations requiring coaxial cables, it is usually preferrable that you maintain the attenuation loss as low as possible. Cable runs for RF installations should be maintained as short as possible to ensure minimal signal loss.

Section image

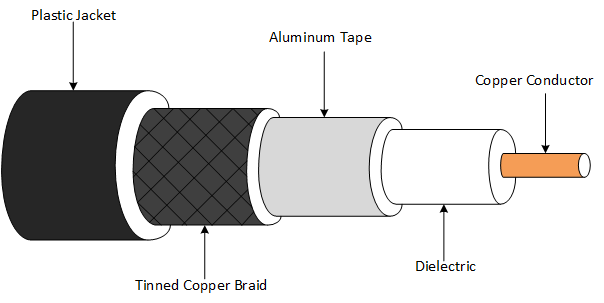

Cross-Section of a Coaxial Cable

Cross-Section of a Coaxial Cable

Typically, attenuation loss is a factor of cable length and frequency of operation. The longer the cable run, the higher the loss and the higher the frequency of operation the higher the attenuation. It is therefore advisable to use the 400 and 600 series cable for runs greater than 100ft.

Section image

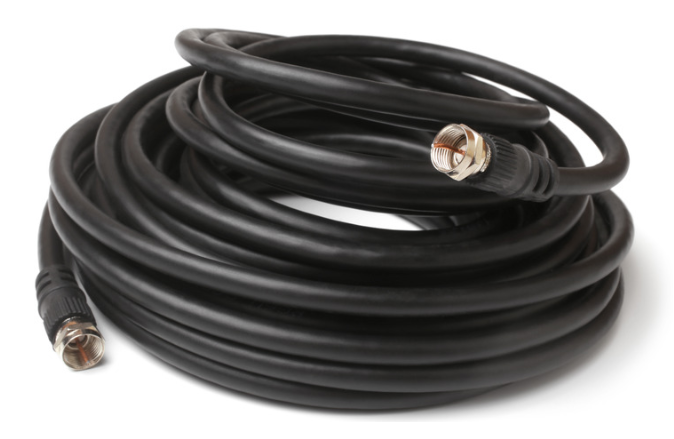

Image of Coaxial Cable Roll

Image of Coaxial Cable Roll

Popular cable series with attenuation information

Popular cable series offer defined attenuation levels, helping users choose the right cable for efficient signal transmission across different RF applications.

text images content

Consider the following when choosing a Low-Loss/ Ultra Low-Loss Cable:

  • Characteristic impedance (Should match with impedance of other network components).
  • Frequency of application as it determines the attenuation of your signal, the higher the frequency the higher the attenuation.
  • Operational power handling capabilities
  • Voltage Standing Wave Ratio (VSWR)
  • Environmental conditions (Determines the level of cable flexibility, shielding & cladding material etc.)
  • Noise handling (The symmetry of signal and returning current carrying conductors cancels, to first order, all effects of external electromagnetic fields. Any residual susceptibility in a coaxial cable results from imperfections in its shield)
  • Phase Delay (Time delay for each frequency component)

RfWeL stocks a wide variety of low loss and ultra low loss cables for your diverse needs. Contact our Wireless Communication Specialists here to help with your cable/ pigtail selection.
