Cellular Band Antennas for 0.7, 0.8, 1.9, 2.1 GHz Bands


cell tower

Cellular signal improvement and extending cellular coverage is at the core of Rfwel business competencies. Modern cellular voice, video & data networks require signal strengths above a certain threshold for reliable communication. At Rfwel we understand cellular systems signal optimization. There's no one-size-fits-all answer when it comes to cellular signal improvement. It depends on individual application (in-building, mobile, one-room, many-rooms, mounting locations, signal strength, devices to be boosted etc). Contact us for a free design consultation more


Care must be taken in selecting a cellular antenna to abide by regulatory and carrier network limits on EIRP (Effective Isotropic Radiated Power). Too much signal gain is just as bad as too little!




Quick Links



Cellular Band Antennas

Indoor table top Antennas



Indoor Dome Antennas



Indoor Panel & Patch Antennas



Vehicle Antennas



Outdoor Directional Yagi

  Wide-band & Multi-bandAntennas (Includes outdoor Wide-Band Log Periodic Dipole Antenna)
Outdoor Omni-Directional Antennas   LTE Antennas
Related Links & Accessory Info

2.5 GHz Antennas (WiMax)

Cellular RF Bidirectional Amplifiers/Repeaters

LMR-600 Low Loss Cables (ultra low loss but inflexible use for long runs ~ 3.787 dB/100ft @1.9GHz)

LMR-400 Low Loss Cables (ultra low loss but inflexible use for long runs ~ 5.824 dB/100ft @1.9GHz)

RG58 & LMR-200 Cables (thin but lossy. Use for short runs ~14.614 dB/100ft @1.9GHz)

Cable Attenuation Calculator

Lightning Protection

Passive Components. Filters, splitters, diplexers, attenuators, power combiners etc.

  Top



Cellular Antennas



Image Brief Description E-Store SKU & Link
Indoor table top Antennas
Freedom Blade Cellular Antenna

Portable Cellular Desk Antenna (Freedom Blade Antenna)

Frequency Range 800-2500 MHz
Antenna Gain(dBi) 2 Info
VSWR(50 Ohm) ≤2.5
Polarization Vertical
Input impedance(Ω) 50
Size(inches) 5.5"x1"x0.75"
Construction Black /UV Stabilized Plastic
Cable/ Connector 3ft ARC100 Cable w/ FME-Female Connector

- portable low-profile cellular booster solution

Top

CLFRDMBLADE
Freedom cellular antenna

Portable Cellular Desk Antenna (Freedom Antenna)

Frequency Range 800-2500 MHz
Antenna Gain(dBi) 3 Info
VSWR(50 Ohm) ≤2.0
Polarization Vertical
Input impedance(Ω) 50
Size(inches) 5.8"x3.3"x0.75"
Construction Black /UV Stabilized Plastic
Cable/ Connector 3ft ARC100 Cable w/ FME-Female Connector



Top

ANFRDM-STALN
Vehicle Mobile Antennas (Dualband & Wideband)
Cellular magnet mount

Info Cellular/ PCS Magnet Mount Antenna

Frequency Range 806-894 MHz / 1850-1990 MHz
Antenna Gain(dBi) 5.12 dBi 806-894MHz / 6.12 dBi 1850-1990 MHz
VSWR(50 Ohm) ≤2.0
Polarization Vertical
Input impedance(Ω) 50
Size(inches) ø1" x 12.25" Height
Construction Stainless steel whip
Cable/ Connector 10ft RG174 w/ FME-Female Connector

- Needs to be mounted on metallic surface at least 3.5" in diameter which acts as the ground plane.

- To convert to the more popular N-Female connector to allow to use N-Male cables use an FME-Male/N-Female Connector. Mates directly the cellular phone & modem pigtail which has FME-male connector.

Top

301103
MGRM-WLF-1C10 Wideband WiMax Antenna

PCS/ WiMax Wideband Magnet Mount

Frequency Range  694-894 MHz / 1.7 - 2.7 GHz (Cellular, PCS, AWS, WiMax)
Gain(dBi) 3
VSWR(50 Ohm) ≤2.0
Polarization Vertical
Input impedance(Ω) 50
Size(inches) ø1.75" x 3" Height
Construction ABS Plastic
Cable/ Connector 10ft RG-58U w/ N-Male Plug

- Can be used with Sprint 4G, Comcast, Clearwire, Timewarner modems that operate on both Cellular EVDO RevA 1.9GHz PCS and WiMax 2.6GHz. For example on the Franklin U300 & U301 USB Modem.

- note that this antenna supports all cellular/pcs/wimax/aws frequncy bands (e.g can use with T-Mobile 3G HSPA+)

- low-profile suitable for vehicle or public enclosure anti-vandalism applications

Top

MGRM-WLF-1C10
Trucker mirror mount cellular antenna

Trucker Side-View Mirror Mount Cellular Antenna

Mirror Mount Antennas mount on a bracket on large vehicles such as 18-wheelers, RVs, dump trucks and cement trucks, or boats. The 3/8-24 threaded base will fit many existing antenna bases.

Frequency Range 806-894 MHz / 1850-1990 MHz
Antenna Gain(dBi) 5.12 dBi 806-894MHz / 6.12 dBi 1850-1990 MHz
VSWR(50 Ohm) ≤2.0
Polarization Vertical
Input impedance(Ω) 50
Size(inches) 10.5" Height
Construction Whip is stainless steel, extension is fiberglass
Cable/ Connector Includes 10.5ft RG-58 cable w/ FME-Female Connector

- May also be used in-building or outdoors
- includes built-in ground plane so can mount on any surface
-Mounting hardware NOT INCLUDED (see right). Need 3/8" x 24 thread mount.

Installation Instructions

301101

3/8" x 24 3-way mount w/ spade stud P/N#901104

3-way mount w/ spade stud

3/8"x24 horizontal mount w/ spade stud P/N#901106

Horizontal mount wi/ spade stud

3/8"x24 mirror mount for mack/ freightliner P/N#901108

mirror mount for mack /freightliner

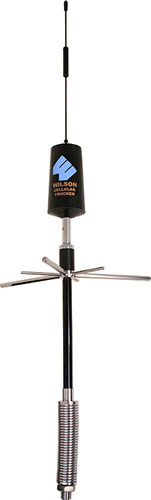

RC/Trucker Spring-Mount Antenna

RV/ Trucker Side-View Mirror Mount Cellular Antenna w/ Spring

Built in spring reduces potential impact damage without compromising antenna performance.

Frequency Range 806-894 MHz / 1850-1990 MHz
Antenna Gain(dBi) 5.12 dBi 806-894MHz / 6.12 dBi 1850-1990 MHz
VSWR(50 Ohm) ≤2.0
Polarization Vertical
Input impedance(Ω) 50
Size(inches) 21.5" Height (including spring mount)
Construction Whip is stainless steel
Cable/ Connector Includes 13.5ft RG-58 cable w/ FME-Female Connector

- Designed for RV's
-Mounting hardware NOT INCLUDED (see right). Need 3/8" x 24 thread mount.

Installation Instructions

Top

301133

3/8" x 24 3-way mount w/ spade stud P/N#901104

3-way mount w/ spade stud

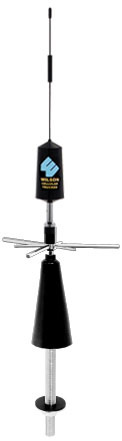

RV/ Trucker Roof Mount Antenna

RV/ Trucker Roof Mount Cellular Antenna

• 5/8 inch x 7 inch threaded mounting rod spans the distance between RV’s roof and headliner
• Angled surface mounting kit included
• 5/8 inch threaded brass rod can be easily cut for various mounting depths
• No ground plane required
• Includes all mounting hardware

Frequency Range 806-894 MHz / 1850-1990 MHz
Antenna Gain(dBi) 5.12 dBi 806-894MHz / 6.12 dBi 1850-1990 MHz
VSWR(50 Ohm) ≤2.0
Polarization Vertical
Input impedance(Ω) 50
Size(inches) 18" Height (24" including mount)
Construction Whip is stainless steel
Cable/ Connector Includes 13.5ft RG-58 cable w/ FME-Female Connector

- Designed for RV's
-Mounting hardware INCLUDED 5/8"x7" threaded mounting rod

Installation Instructions

Top

301119
In-Building Dome Antennas
cellular dualband dome antenna

Dual-Band Cellular Dome Antenna

Frequency Range  800-910 MHz/ 1800-1900 MHz
Gain(dBi) 2.5
Polarization Vertical
Input impedance(Ω) 50
Size(inches) ø8" x 4.3" Height
Construction ABS Plastic
Connector N-Female (no cable)

- low-profile suitable for in-building ceiling mounting or RV's.

Top

301121
cellular dualband dome antenna

Single-Band 800MHz Dual-Polarity Cellular Dome Antenna

Frequency Range  800/ 900 MHz
Gain(dBi) 5.2dBi @ 800MHz, 4dBi @ 900MHz
Polarization Vertical & Horizontal
VSWR(50 Ohm) 1.5:1
Hor & Vertical Beamwidth (Azimuth/Elevation) 360°/ 150°
Input impedance(Ω) 50
Size(inches) ø7.72" x 4.3" Height
Construction ABS Plastic
Connector N-Female (no cable)

- low-profile suitable for in-building ceiling mounting or RV's.

Top

301123
Indoor/Outdoor Omni Antennas

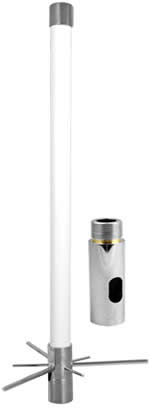

Dual band marine antenna

Dual-Band Cellular Omni-directional Antenna (suitable for marine applications)

Frequency Range  806-894 MHz / 1850-1990 MHz
Gain(dBi) 5.12 dBi 800MHz / 6.12 dBi 1900 MHz
Polarization Vertical
Input impedance(Ω) 50
Size(inches) ø1.0" x 21" Height (heigh includes coupler)
Cable/ Connector 7" RG58 w/ FME-Female

- Includes a built-in ground plane
- antenna mount NOT INCLUDED (see right)

Top

301130

Antenna mount P/N#901119

Marine antenna mount

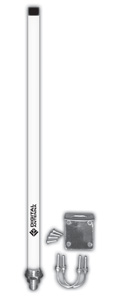

Digital Antenna’s 288-PW universal 18" dual band cellular antenna

9dBi Dual Band Omni-Directional Cellular Antenna

Frequency Range 821-896 MHz, 1850-1990 MHz
Gain(dBi) 9 dBi
Polarization Vertical
Maximum Input Power 200W (53dBm)
Input impedance(Ω) 50
Size(inches) 18" length
Wind Rating 135 mph
Connector N-Female

- includes an L-Bracket for Pole/Wall Mounting
-To mount the 288-PW to a 1.25" threaded mount such as the marine mount, use the F114 double female ferrule.

Top

288-PW
Digital Antenna’s 295-PW universal 18" dual band cellular antenna

9dBi Multi-Band Omni-Directional Cellular Antenna

Frequency Range 824-896MHz,
890-960MHz,
1710-1755MHz,
1710-1880MHz,
1850-1990MHz,
1885-2025MHz,
2110-2155MHz,
2110-2200MHz
Gain(dBi) 9 dBi
Polarization Vertical
Maximum Input Power 200W (53dBm)
Input impedance(Ω) 50
Size(inches) 18" length
Wind Rating 135 mph
Connector N-Female

- includes an L-Bracket for Pole/Wall Mounting
-To mount the 288-PW to a 1.25" threaded mount such as the marine mount, use the F114 double female ferrule.

Top

295-PW
Outdoor Directional Yagi Antennas
800mhz cellular yagi antenna

800 MHz Cellular Yagi Antenna

Frequency Range 806-939 MHz
Gain(dBi) 13 dBi
Polarization Vertical or Horizontal
Maximum Input Power 50W (47dBm)
Input impedance(Ω) 50
Size(inches) 32.5" length
Wind Surface Area <120 cm2
Connector N-Female

- 8-element yagi antenna. Includes mounting hardware for 0.5"-1.5" OD poles.
-

Top

301111
1900mhz yagi cellular antenna

1800-1990 MHz PCS Yagi Antenna

Frequency Range 1800-1990 MHz
Gain(dBi) 13 dBi
Polarization Vertical or Horizontal
VSWR(50 Ohm) 1.5:1
Maximum Input Power 25W (44dBm)
Input impedance(Ω) 50
Size(inches) 16.8" long
Wind Surface Area <120 cm2
Connector N-Female

- 9-element yagi antenna. Includes mounting hardware.

Top

301124
Wide-band & Multi-band
wideband log-periodic antenna

Cellular/ WiMax Wideband Log-Periodic 800-2700MHz Outdoor Antenna

Supports:

• WiMax 2500-2690
• Cellular, iDEN, PCS band for N. America & International GSM/WCDMA & CDMA/ CDMA2000
• 900MHz ISM (902-928 MHz)
• WiFi 802.11b/g/n (2.4 GHz)
• DECT Europe (1880-1900) & U.S UPCS (1920-1930)

Frequency Range 824-960, 1710-2190, 2500-2690 MHz
Gain(dBi) 8.0 dBi
Polarization Vertical or Horizontal
Hor Beamwidth (AZ BW) 70o
Vert Beamwidth (EL BW) 50o
Maximum Input Power 200W (53dBm)
VSWR <1.5:1
F2B >15dB
Input Impedance(Ω) 50
Size(inches) 11.6" x 8.27" x 2.52"
Connector N-Female

- Includes pole mounting hardware for <2" OD poles

Top

RFWAT2P5LPDANF
wideband log-periodic antenna

Cellular Wideband Log-Periodic 800-2500MHz Antenna

Supports:

• Cellular, iDEN, PCS band for N. America & International GSM/WCDMA & CDMA/ CDMA2000
• 900MHz ISM (902-928 MHz)
• WiFi 802.11b/g/n (2.4 GHz)
• DECT Europe (1880-1900) & U.S UPCS (1920-1930)

Frequency Range 800-2500 MHz
Gain(dBi) 800-915: 8.0 dBi
915-1710: 7.0 dBi
1710-1850: 9.0 dBi
1850-1990: 10.5 dBi
1990-2500: 10.0 dBi
Polarization Vertical or Horizontal
Hor Beamwidth 70o to 90o
Vert Beamwidth 85o to 110o
Maximum Input Power 100W (50dBm)
F2B >20dB
Input Impedance(Ω) 50
Size(inches) 11.42" x 8.27" x 2.56"
Rated Wind Velocity 134 mph
Connector N-Female

- Includes pole mounting hardware for <2" OD poles

Top

304411
Hepta-Band Omni Antenna

Hepta-Band (7-Band) Omnidirectional Antenna

Supports:

  • 824-894 MHz cellular band (GSM/CDMA)
  • 880-960 MHz includes 900Mhz unlicensed band from 902-928MHz
  • 1575 MHz for gps
  • 1710-1880 AWS
  • 1850-1990 cellular PCS band
  • 1920-2170 AWS
  • 2400-2500 includes 2.4GHz unlicensed band

Right-angle articulating antenna 6.3" height with SMA-male connector.

MAF94300
Indoor Panel & Patch Antennas
Indoor cellular panel antenna

Dual-Band Indoor Panel Antenna

Frequency Range  800-960 MHz / 1710-2500 MHz
Gain(dBi) 7 dBi @ 800MHz/ 10 dBi @ 1.9 GHz
VSWR(50 Ohm) ≤1.5
Polarization Vertical
3dB Beam Width 50o / 45o
Maximum Input Power 50W (47dBm)
Input impedance(Ω) 50
Size(inches) 8.27" x 7.09" x 1.73"
Cable/ Connector 4" N-Female

- includes mounting hardware

Top

301135
Slim Low Profile Cellular Antenna

Dual-Band Indoor Slim Low-Profile Patch Antenna

Frequency Range  806-894 MHz / 1850-1990 MHz
Gain(dBi) 2.2 dBi @ 800MHz/ 3.2 dBi @ 1.9 GHz
Polarization Vertical
Input impedance(Ω) 50
Size(inches) 5"x1.5"
Cable/ Connector 10' RG174 FME-Female

- includes 3M™ adhesive for mounting to glass
- can mount inside vehicle on glass or in building 6" away from metallic objects

Top

301127

  Top




Contact us to discuss your application. Our experienced team will custom-build your cellular signal improvement solution using. Rfwel is a Licensed Low-Voltage Wireless Communication contractor (Arizona ROC#253407) should you need deployment assistance.



Buy Long Range Wireless Bridging Radios

  SCADA/M2M Hardware using cellular data backhaul
  Top



2004 - 2015 RfWeL Engineering, LLC. All rights reserved.
