Remote Wireless Infrastructure

Wireless Vehicle Data



Remote Wireless Data Solutions.Escape from the tethered realm!

Finally, we have a truly mobile and nomadic wireless data solution to serve the needs of the mobile market. Mobility implies that connection is maintained when traveling at speeds as much as 100mph and nomadic implies connection is seamlessly maintained in different geographic areas transferring all the AAA (Authentication, Authorization & Accounting) functions to the new location. Cellular data technologies 4G LTE and 5G NR can finally conquer this challenge.

Important parameters for high quality in-vehicle wireless data hardware & service such as cellular modems/routers include:

Inherent support for mobility and nomadism as explained above

Rugged design, vehicle mountable & built to withstand dynamic environments

Upgradeable. Ability to add high gain antennas & amplifiers for areas with low RSS

Ability to integrate with other wireless vehicle telematics solutions

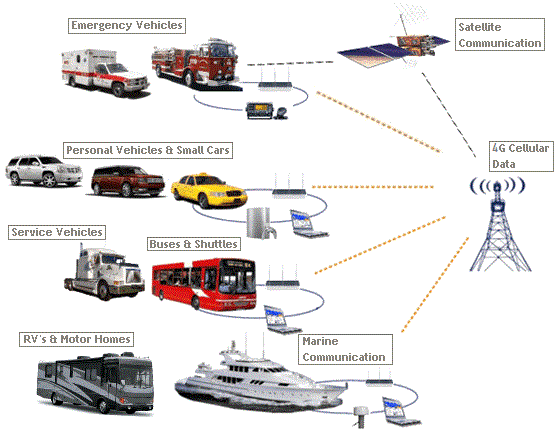

Illustration of Vehicle Remote Wireless Data





Vehicle Wireless Data Connections Using 3G & Satellite







Wireless Data Solutions for RV's




Remote Wireless Data Solutions.Escape from the tethered realm!

RfWeL offers high-speed wireless data solutions serving the RV community. Now more than ever the RV can truly be a mobile office with multiple economical wireless data communication options and seamless connectivity coast-to-coast. Depending on your individual budget and performance requirements a RfWeL wireless data specialist will work with you to determine the most optimal configuration to meet your needs, be it Cellular 4G data with WWAN routers, BGAN satellite terminals, WiFi Bridges or a combination thereof.





RV Redundant Communication Backhaul System (mouse over to learn more)






Sample Bill of Materials:


SKU/MPN Description Remarks
LTE Booster Amplifier

-- various --

LTE Amplifiers

Improves signals on both Cellular (824-894 MHz) and PCS (1850-1990 MHz) bands as well as LTE Bands 700, AWS, 2.5GHz. Works with all major U.S. and Canadian carriers.
WiFi 2.4GHz Booster Amplifier

12-212

Teletronics 2.4 GHz Indoor Amplifiers With AGC

Contact us for customized computation of available link budget and minimum required amplifier gain
IP Surveillance Camera

-- various --

Mobile Cameras

IP addressable camera. Contact us for storage options
Solar PV Array

-- various --

Different sizings & mounting depending on the need

Contact us for SKU & specifications. Custom sized for your power requirements and portability requirements.
WiFi Antenna
-- various --

Various Types depending on the application

Contact us for custom cables, cable lengths, or connectors not included in this kit.
GPS Receiver

-- various --

GPS Timing amplifiers

This receiver also acts as a Cellular 4G data modem, cellular router, and WiFi access point. Contact us to learn more.
GPS Antenna

-- various --

Vehicle GPS Antenna

Contact us for your individual mounting constraints and color/style options
BGAN/VSAT Satellite

-- various --

Contact us

Contact us for SKU & specifications





Wireless Data for Service Vehicles




Remote Wireless Data Solutions.Escape from the tethered realm!

RfWeL offers mobile workforce productivity solutions targeted towards service vehicles and service personnel. Wireless high-speed cellular data solutions now allow unprecedented productivity gains. Contact us to learn more.











Wireless Data for Personal Vehicles




Remote Wireless Data Solutions.

RfWeL offers wireless data solutions for personal vehicles for applications such as real-time gaming, GPS navigation real-time tracking & reporting, and general web surfing while on the road. These low cost, high-performance solutions have clearly revolutionized on-road high-speed data access.







Compare Vehicle & RV Antennas Specs
Item Key Specifications Available at these Online Market Places

Pulse/ Larsen GPSDM700-5800GGT (MPN: GPSDM700/5800GGT)

GPSDM700-5800GGT image

Device Type: 4G LTE Antennas, GPS Antennas, Vehicle & RV Antennas, Wi-Fi Antennas
Frequency: 698 - 5875 MHz
Gain: 6.5 dBi
Connectors: SMA-Male, RPSMA-Male, SMA-Male



buy GPSDM700-5800GGT from RFWEL Engr E-Store







buy GPSDM700-5800GGT from Amazon







buy GPSDM700-5800GGT from eBay





Rfwel Infra RFWAT2P5MMSM

RFWAT2P5MMSM image

Device Type: Wi-Fi Antennas, Vehicle & RV Antennas
Frequency: 2300 - 2700 MHz
Gain: 3 dBi
Connectors: SMA-Male



buy RFWAT2P5MMSM from RFWEL Engr E-Store







buy RFWAT2P5MMSM from Amazon





Mobile Mark LTM501-3C3C3C3C2C-BLK-180

LTM501-3C3C3C3C2C-BLK-180 image

Device Type: 4G LTE Antennas, Wi-Fi Antennas, GPS Antennas, Vehicle & RV Antennas
Frequency: 694 - 6000 MHz
Gain: 5 dBi
Connectors: SMA-Male, SMA-Male, SMA-Male, SMA-Male, SMA-Male



buy LTM501-3C3C3C3C2C-BLK-180 from RFWEL Engr E-Store







buy LTM501-3C3C3C3C2C-BLK-180 from Amazon





Mobile Mark RM-WLF-1C-BLK-12

RM-WLF-1C-BLK-12 image

Device Type: 4G LTE Antennas, Vehicle & RV Antennas
Frequency: 694 - 2700 MHz
Gain: 3 dBi
Connectors: SMA-Male



buy RM-WLF-1C-BLK-12 from RFWEL Engr E-Store





Mobile Mark LTM501-3C3C3J3J2C-BLK-180

LTM501-3C3C3J3J2C-BLK-180 image

Device Type: 4G LTE Antennas, Wi-Fi Antennas, Vehicle & RV Antennas
Frequency: 694 - 6000 MHz
Gain: 5 dBi
Connectors: SMA-Male, SMA-Male, SMA-Male, SMA-Male, SMA-Male



buy LTM501-3C3C3J3J2C-BLK-180 from RFWEL Engr E-Store







buy LTM501-3C3C3J3J2C-BLK-180 from Amazon





weBoost 304415

304415 image

Device Type: 4G LTE Antennas, Vehicle & RV Antennas
Frequency: 700 - 2270 MHz
Gain: 3.5 dBi
Connectors: SMA-Male



buy 304415 from RFWEL Engr E-Store





Pulse/ Larsen GPSDMW7005800SSS (MPN: GPSDMW700/5800SSS)

GPSDMW7005800SSS image

Device Type: 4G LTE Antennas, GPS Antennas, Vehicle & RV Antennas, Wi-Fi Antennas
Frequency: 698 - 5875 MHz
Gain: 6.5 dBi
Connectors: SMA-Male, SMA-Male, SMA-Male



buy GPSDMW7005800SSS from RFWEL Engr E-Store





Pulse/ Larsen GPSDM7005800SSS (MPN: GPSDM700/5800SSS)

GPSDM7005800SSS image

Device Type: 4G LTE Antennas, GPS Antennas, Vehicle & RV Antennas, Wi-Fi Antennas
Frequency: 698 - 5875 MHz
Gain: 6.5 dBi
Connectors: SMA-Male, SMA-Male, SMA-Male



buy GPSDM7005800SSS from RFWEL Engr E-Store







buy GPSDM7005800SSS from Amazon







buy GPSDM7005800SSS from eBay





Pulse/ Larsen GPSDM7002500FFS (MPN: GPSDM700/2500FFS)

GPSDM7002500FFS image

Device Type: 4G LTE Antennas, GPS Antennas, Wi-Fi Antennas, Vehicle & RV Antennas
Frequency: 698 - 2700 MHz
Gain: 6 dBi
Connectors: FME-Female, FME-Female, SMA-Male



buy GPSDM7002500FFS from RFWEL Engr E-Store







buy GPSDM7002500FFS from Amazon





Pulse/ Larsen GPSDM700/2500SSS

GPSDM700/2500SSS image

Device Type: 4G LTE Antennas, GPS Antennas, Vehicle & RV Antennas, Wi-Fi Antennas
Frequency: 698 - 5875 MHz
Gain: 6.5 dBi
Connectors: SMA-Male, SMA-Male, SMA-Male



buy GPSDM700/2500SSS from RFWEL Engr E-Store





Mobile Mark ECOS6-3500DN-BLK

ECOS6-3500DN-BLK image

Device Type: 4G LTE Antennas, Vehicle & RV Antennas, CBRS Antennas (3.5 GHz)
Frequency: 3500 - 3700 MHz
Gain: 6 dBi
Connectors: N-Female



buy ECOS6-3500DN-BLK from RFWEL Engr E-Store





Laird Technologies TRAB806/17103

TRAB806/17103 image

Device Type: 4G LTE Antennas, Wi-Fi Antennas, Vehicle & RV Antennas, 5G NR Antennas
Frequency: 806 - 2500 MHz
Gain: 5.9 dBi
Connectors: NMO



buy TRAB806/17103 from RFWEL Engr E-Store







buy TRAB806/17103 from Amazon
